Brand NUMERIC UPS System Line Interactive UPS Numeric Make 1 KVA Line Interactive UPS

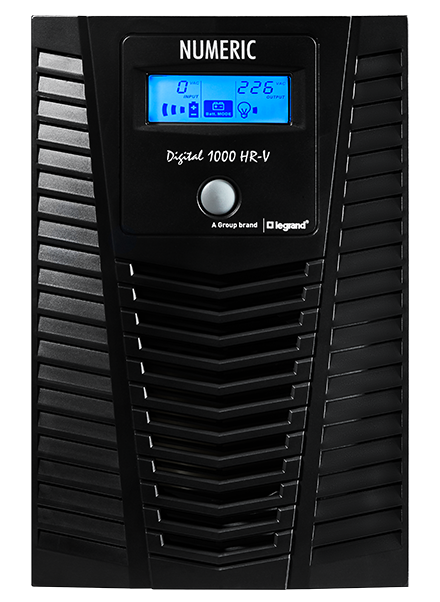

Numeric Make 1 KVA Line Interactive UPS
Item Image - Front Side
Item Image - Back Side
Item Image - Top Side

Numeric Make 1 KVA Line Interactive UPS

Digital 1000 HR V

UPS System Line Interactive UPS

Price:

MRP You save 0

Digital 1000 HR V comes with a long backup charger that allows connecting higher capacity batteries. This ensures uninterrupted power backup for extended duration Generator Compatibility Battery Mode Startup LCD Display Double Boost & Single Buck AVR Long Backup Charger Overload and Short Circuit Protection Auto Restart Facility UL Standard Flame Retardant Cabinet BIS Registered

Reset default

Specification

Output Specification
Output Capacity (KVA )
1 Kva
Output Capacity (KW )
0.6 Kw
Output Phase
1 Phase
Output Voltage
230 Phase
Output Frequency (sync to mains)
45 - 55 Hz
Technology
Line Interactive
Transfer Time
Output Waveform type
Stepped approximation to a sinewave
Output Connections
3-Pin 6A Indian Socket
Input Specification
Input Voltage
230 Volt
Input Phase
1 Phase
Input frequency Range
45 - 55 Hz
Input Connections
India 3 Pin 6 Amp
Input Protection
Input Power Cord Lengh
Batteries & Runtime
Approved Battery Capacity (AH)
Battery DC Bus
Maximum Charger Capacity
Battery Type Compatibility
Sealed Maintenance Free (SMF) / Valve Regulated Lead Acid (VRLA) type, Flooded / tubular / vented type
Batteries Recharge Time upto 90%
6 Hrs.
Communication & Management
Control panel
LED status display
Audible Alarm
Audible and visible alarms prioritized by severity
Interface Port(s)
USB
Power Management Software
Physical
Maximum Height
180 Mm
Maximum Width
368 Mm
Maximum Depth
140 Mm
Net Weight
14 Kg
Shipping weight
Shipping Height
Shipping Width
Shipping Depth
Colour
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
Audible noise at 1 meter from surface of unit
45 Decibal
Compliances
Approvals
BIS
Other Specifications
Filtering
Yes
Surge Protection
Yes

Documentation

Item Catalogue
Numeric-Digital-1000-HR-V-2_1 (1)
